CNG-Series Quick Disconnect Coupler

8CNGOM8-S - CNG-Series Quick Disconnect Coupler

Dixon Distributor?

Log in to view pricing, inventory, place orders & much more. If you want to create an account, please click the button to begin the registration process.

Attributes
Details
Resources

Attributes

Maximum Operating Pressure	5000 PSI (345 bar)
Weight	3.16 lb
Break Quantity	1
Optional Package/Box Quantity	1
Size	1"
Material	303 Stainless Steel
Component Material	303 Stainless Steel
Maximum OD	2.65"
Male Thread	ORB
Thread	Male ORB
Pressure Seal	FKM, SC
Body Size	1"
Working Pressure	5000 PSI MAWP
Coupler Size	1"
Temperature Range	-65°F to 400°F (-54°C to 204°C)
Burst Pressure	18,500 PSI (1,275 bar)
Thread Size	1-5/16"-12 ORB
Length	4.49" (119.4 mm)
OD	2.65" (67.6 mm)
Maximum Temperature	400°F (204°C)
Flow	74 GPM @ 22 PSI
Male Thread Size	1-5/16"-12 ORB

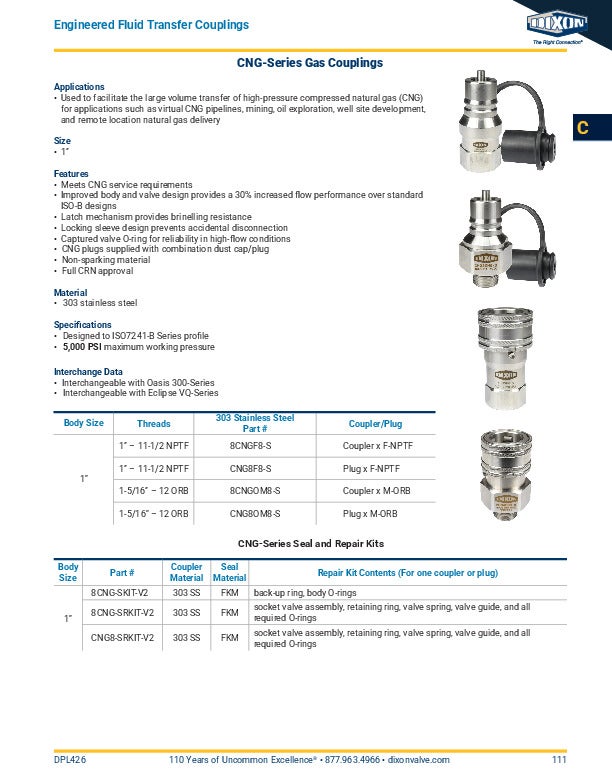

Details

Specifications

Improved body and valve design provides a 30% increased flow performance over standard ISO-B designs
The latch mechanism provides brinelling resistance
Locking sleeve design prevents accidental disconnection
Captured valve O-ring for reliability in high-flow conditions
Non-sparking material

Construction

Machined from 303 stainless steel bar stock
Pressure Seal: FKM / Nitrile

Compatibility & Interchange Data

Designed to ISO7241-B Series profile, Oasis 300

Note

Latches
High strength corrosion resistance
A large contact area distributes the load
Brinelling resistant design

Applications

Used to facilitate the large volume transfer of high-pressure compressed natural gas (CNG) for applications such as virtual CNG pipelines, mining, oil exploration, well site development, and remote location natural gas delivery.
