2D Drawing
- Container discharge
- Fuel bunkering
- Loading / unloading of tank trucks, rail cars and ship tankers
- Vapor recovery lines
unknown | en
Dixon Distributor?
Log in to view pricing, inventory, place orders & much more. If you want to create an account, please click the button to begin the registration process.
Attributes
| Weight |
18.12 lb
|
|---|---|
| Break Quantity |
1
|
| Optional Package/Box Quantity |
1
|
| Material |
316 Stainless Steel
|
| Seal |
PTFE
|
| Female Thread |
NPT
|
| Working Pressure |
360 PSI
|
| Minimum Temperature |
-328°F (-200°C)
|
| Female Thread Size |
3"
|
Details
Applications
Available Options
Connections: female NPT, flanged EN and ANSI, others available on request
Features
- Operates independently of shut-off safety system and does not require an external power source
- Lightweight, easy to reset and repair on with site with one person
- High flow rate / low pressure drop
- Positive shut-off of both coupling halves results in minimum product loss
- Passive security where a hose or loading arm could be subjected to inadvertent excessive loads
- Can be installed at fixed points or in the middle of hose strings
- Available as Industrial or Marine types
- No loose components which could be lost after release
WARNING: This product contains lead, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.
Resources

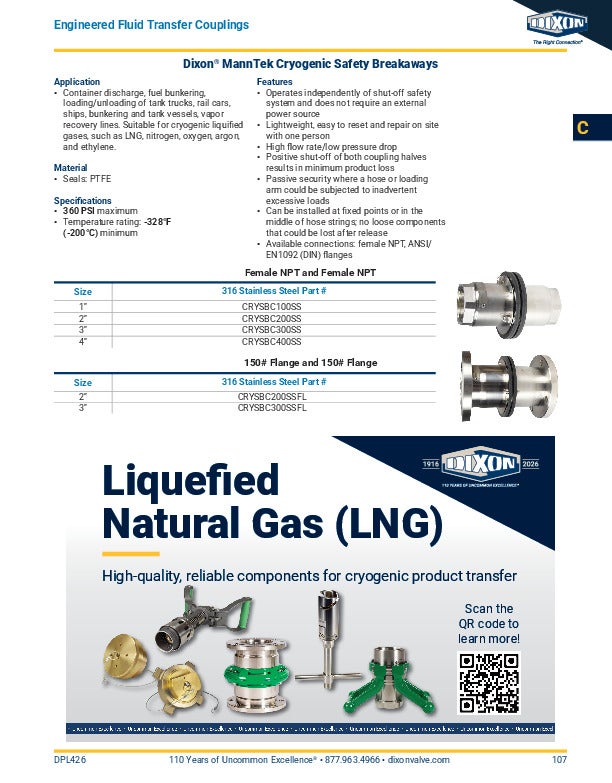

Product Literature
Cryogenic Products
Product Information
